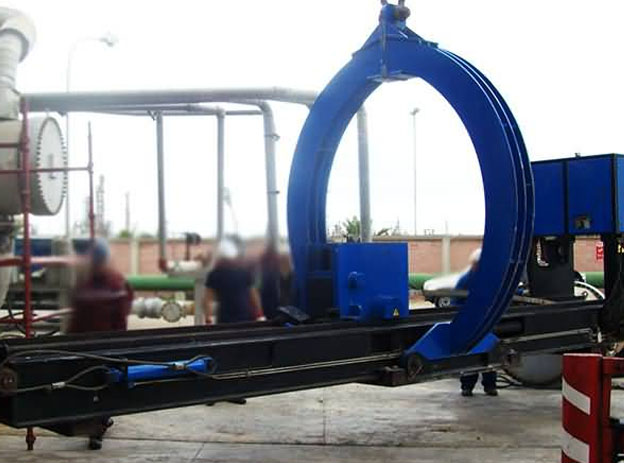

The bundle extractor 100t mod. Bundle Extractor Extra Big Idrokid weights only 7200 kg. (15.870 lbs.) and is long 11000 mm. (32,8 feet), but due to its unique and particular construction in high resistance steel, it is able to pull and push tube bundles till 10500 mm. (34,45 feet) of length, 65 tons of bundle weight up to 3000 mm. (9,84 feet) of bundle diameter with a pulling force of 100 tons.

The Pigging and decoking machine is a new new decoking ‘s concept from Idrojet S.r.l. for industrial cleaning machines, using the latest technology in fact we can now offer you a new machine that can make you save time and money and run your heaters more efficiently.

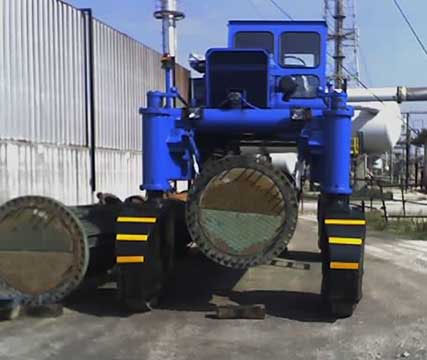

The second phase of heat exchanger maintenance procedure is the bundle transport.When the tube bundle is on the ground a transporter robot called straddle carrier or truck mounted, transports and then places it in the washing area where cleaning robot start to wash it, all it without any crane.Finally when the tube bundle has been cleaned the transporter robot picks up it and placed it where the bundle puller insert it into the shell.

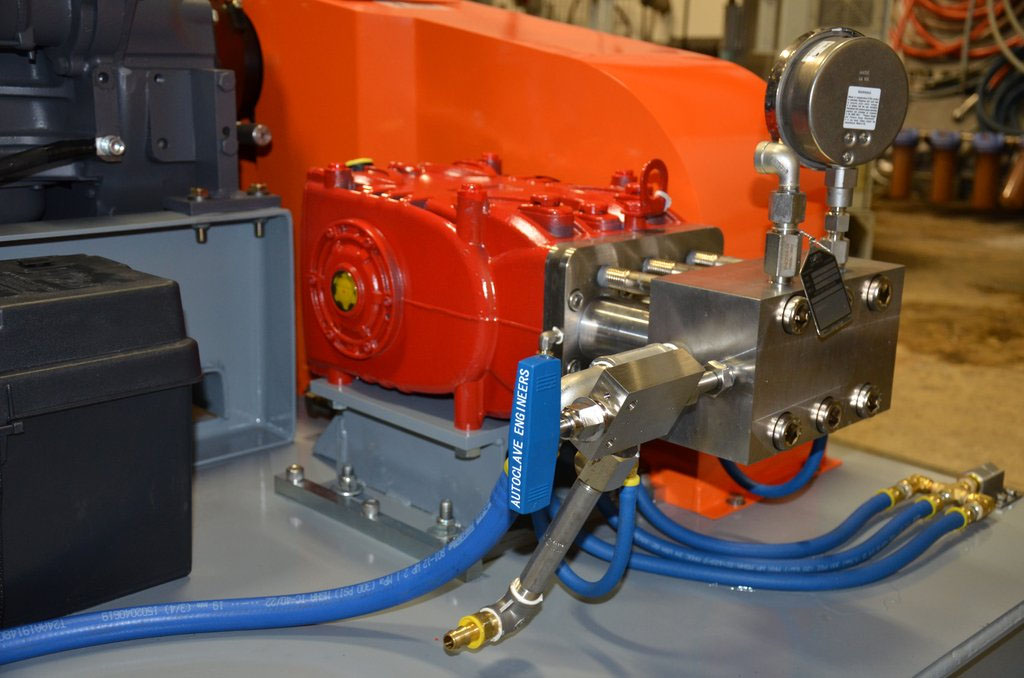

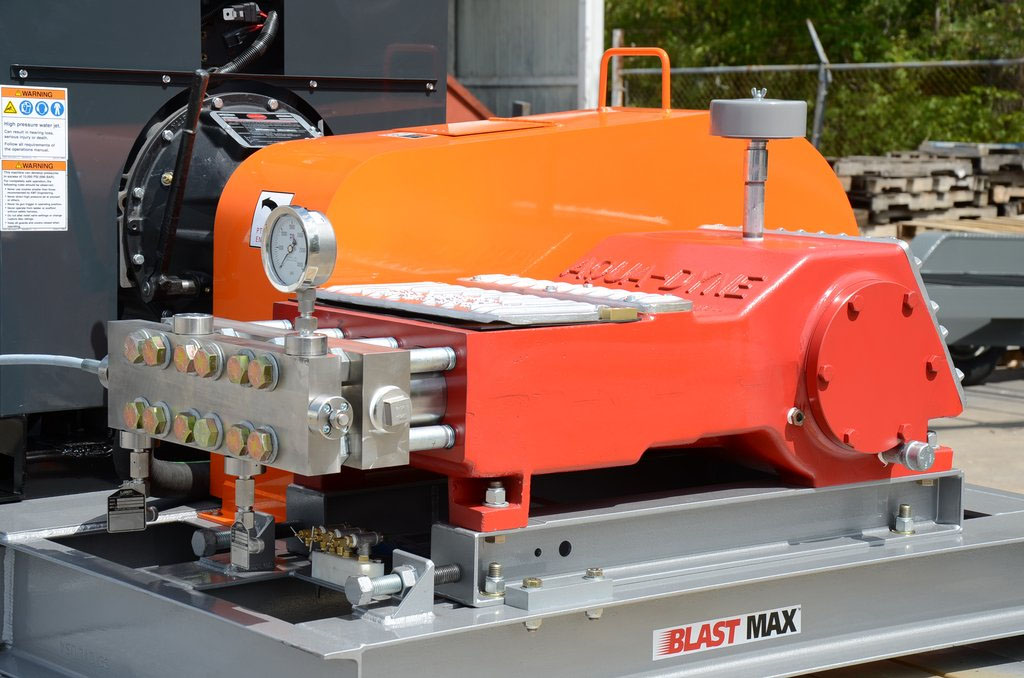

The water pumps Aqua-Dyne BlastMax™ 500 Series is our largest capacity pump for when high flow applications, such as hydro-demolition, are necessary.
Pressures range from 5,000 to 20,000 PSI, flow rates range from 14 to 45 GPM, and horse power ranges from 300 to 500.
500 Series Pumps are offered in packages of options & standard equipment called BlastMax™ Pumping Units.
